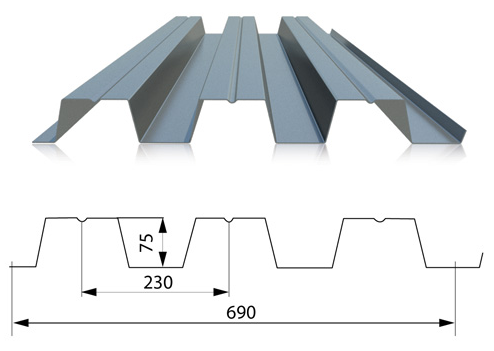

Steel Decking Floor

Type: Common or Customized

Name: Corrugated Metal Sheet, Steel Decking Floor, Steel Structure Metal Floor Sheet, High Depth Steel Decking Sheet, Corrugated Galvanized Steel Decking Floor, Galvalume Steel Floor Decking.

Effective width: 600mm-1025mm

Material width: 1000mm-1250mm

Length: 200mm-12000mm customized

Height Of Wave: 51mm-82mm

Technical Standard: AS1397-2001, ASTM_A653-A653M-2004a, DIN_EN_10142,DIN_EN_10147en, BB2518-2008, JIS_G-3302.

Material Grade: TDC51D+Z, TDC52D+Z, TDC53D+Z, DC51D+Z, DC52D+Z, DC53D+Z, S280GD+Z, S350GD+Z, S550GD+Z,CGCC, SGCC,SGCH,SPCC

Material: GI

Thickness (mm): 0.8-2.0

Coating Type: Zinc

Coating(g/Sqm): 40-275
